YOKE Grade 100 Eye Grab Hook

In stock
SKU: 276-59-1
Regular price £7.80 GBP inc vat
WLL

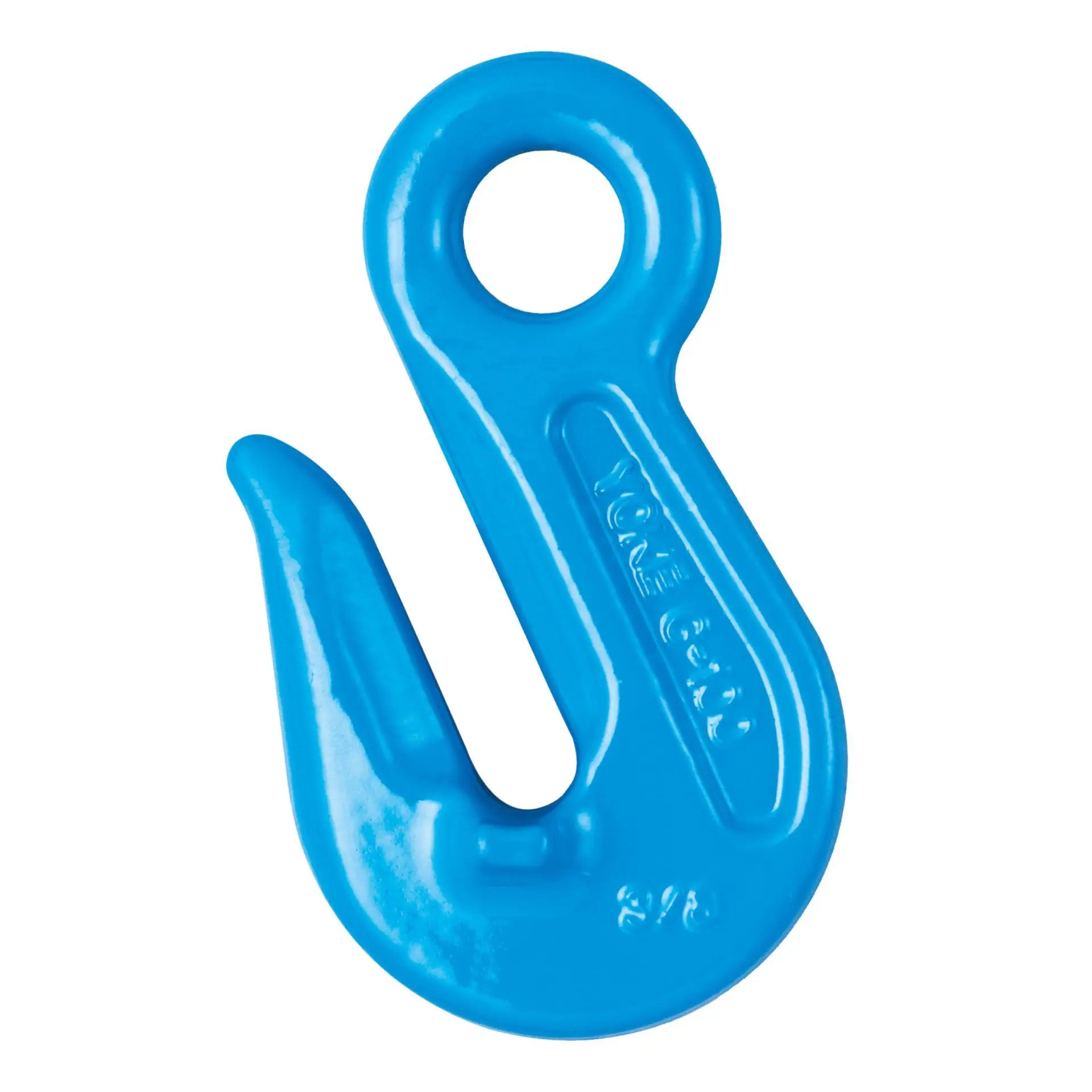

YOKE Grade 100 Eye Grab Hook

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with DIN 5692, EN 1677-1 and ASTM A952/A 952M
  • Certified by DGUV GS-MO-15-05
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Tempering temperature minimum 400°C
  • Not for use with Omega Link
  • Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation

Spec

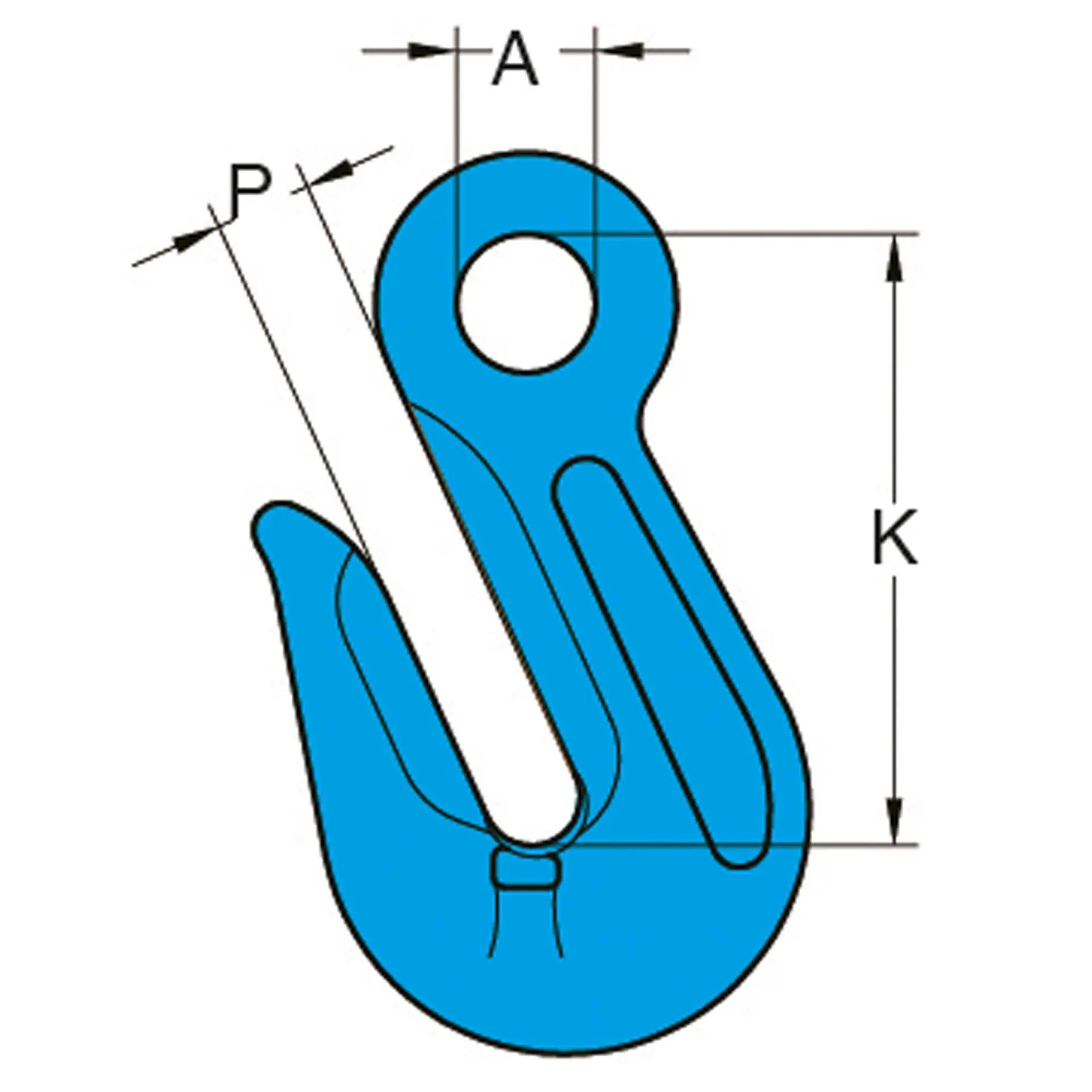

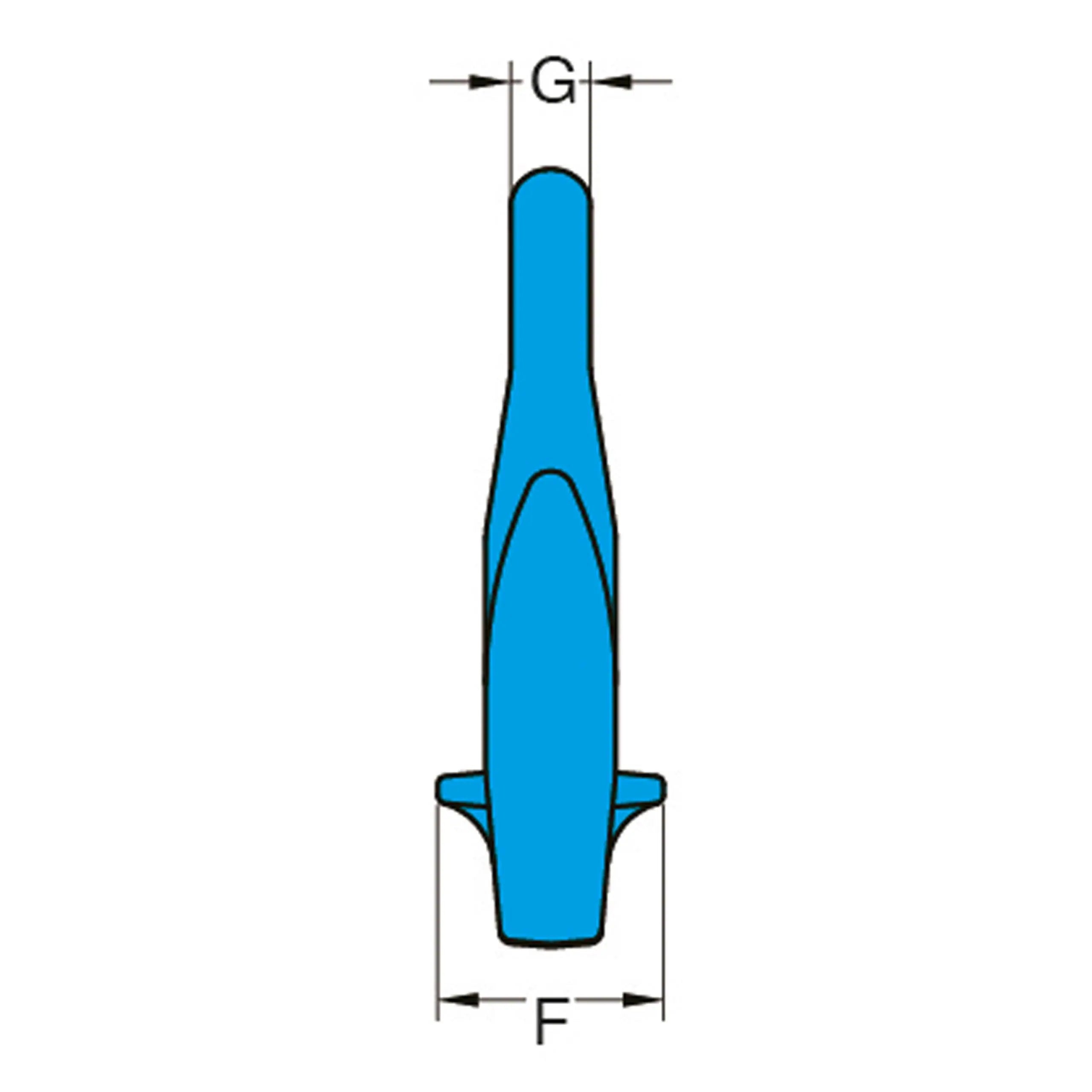

SKU Capacity (t) For Grade 100 Chain (mm) Weight (kg)
276-59-1 1.4 6 0.2
276-59-2 2.5 7, 8 0.3
276-59-3 4 10 0.6
276-59-4 6.7 13 1.4
276-59-5 10 16 2.4
276-59-6 16 20 4
276-59-7 19 22 5
276-59-8 26.5 26 10
276-59-9 40 32 24
