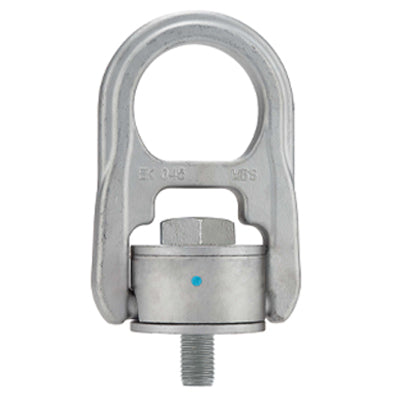

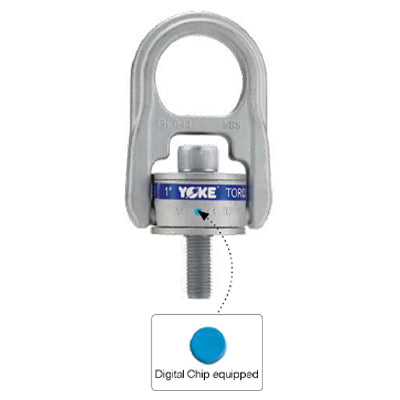

YOKE Digital Hoist Ring - UNC Thread
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

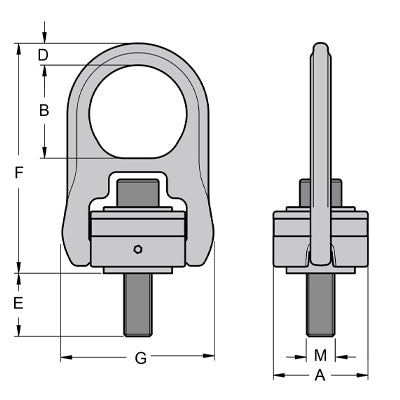

| SKU | Capacity (t) | Bolt Size (inch) | Torque (lbs) | Weight (kg) |
| 276-9-1 | 0.4 | 5/16" | 7 | 0.41 |
| 276-9-2 | 0.5 | 3/8" | 12 | 0.41 |
| 276-9-3 | 1.25 | 1/2" | 28 | 1.67 |
| 276-9-4 | 2 |
5/8" | 60 | 1.8 |
| 276-9-5 | 2.5 |
3/4" | 100 | 1.8 |
| 276-9-6 | 3.5 |
3/4" | 100 | 3.96 |
| 276-9-7 | 4 |
7/8" | 160 | 4.19 |
| 276-9-8 | 5 |
1" | 160 | 4.28 |
| 276-9-9 | 7.5 |
1 1/4" | 470 | 6.53 |
| 276-9-10 | 12 | 1 1/4" | 800 | 15.84 |
| 276-9-11 | 15 |
2" | 1100 | 15.84 |
