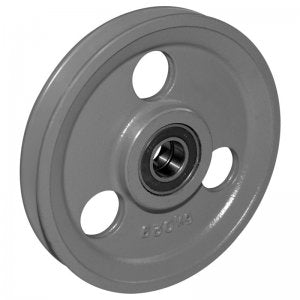

Wire Rope Sheaves made of Cast Iron with Sealed Ball Bearings (Model No. 169K)

In stock
SKU: 182-169K-120
(0)
£173.88 GBP inc vat
Sheave External Ø

Wire Rope Sheaves made of Cast Iron with Sealed Ball Bearings (Model No. 169k)

Turned groove, with sealed ball bearings.

Range of pulley capacity from 250kg to 3200kg.

Range of pulley diameter from 120mm to 375mm.

Please note, these products have a lead-time of around 3 to 4 weeks from order date

Spec

SKU
 182-169K-120 182-169K-150 182-169K-190
 182-169K-235 182-169K-280 182-169K-325 182-169K-375

 Sheave External Ø

mm

120

 150 190 235 280 325 375

Groove Base Ø

mm

 100 125 160 200 240 280 320

Groove Radius

mm

 2.5 3 4 5 6 7 8

Groove Depth

mm

 10
 12 15 17 20 22 27

Rim Width

mm

 18
 22 27 32 36 41 50

Bore for Bolt

mm

 17
 20 25
 30 35
 40
 60

Hub Length

mm

 35
 41.5 34
 37
 62 70 48
Hub Ø mm 55
 60
 74 85
 100
 120
 150

Rope Ø Max.

mm

 5 6 8 10 12 14 16
Ball Bearing Type 6203-2RS 6004-2RS 6205-2RS 6206-2RS 6207-2RS 6208-2RS 6212-2RS

Load Capacity (in kg).

kg

 250
 500
 1000 1000
 1500
 2000
 3200

Weight (in kg) approx.

kg

 0.85 1.45 2.6 4.5 6.8 10.8 16.5
