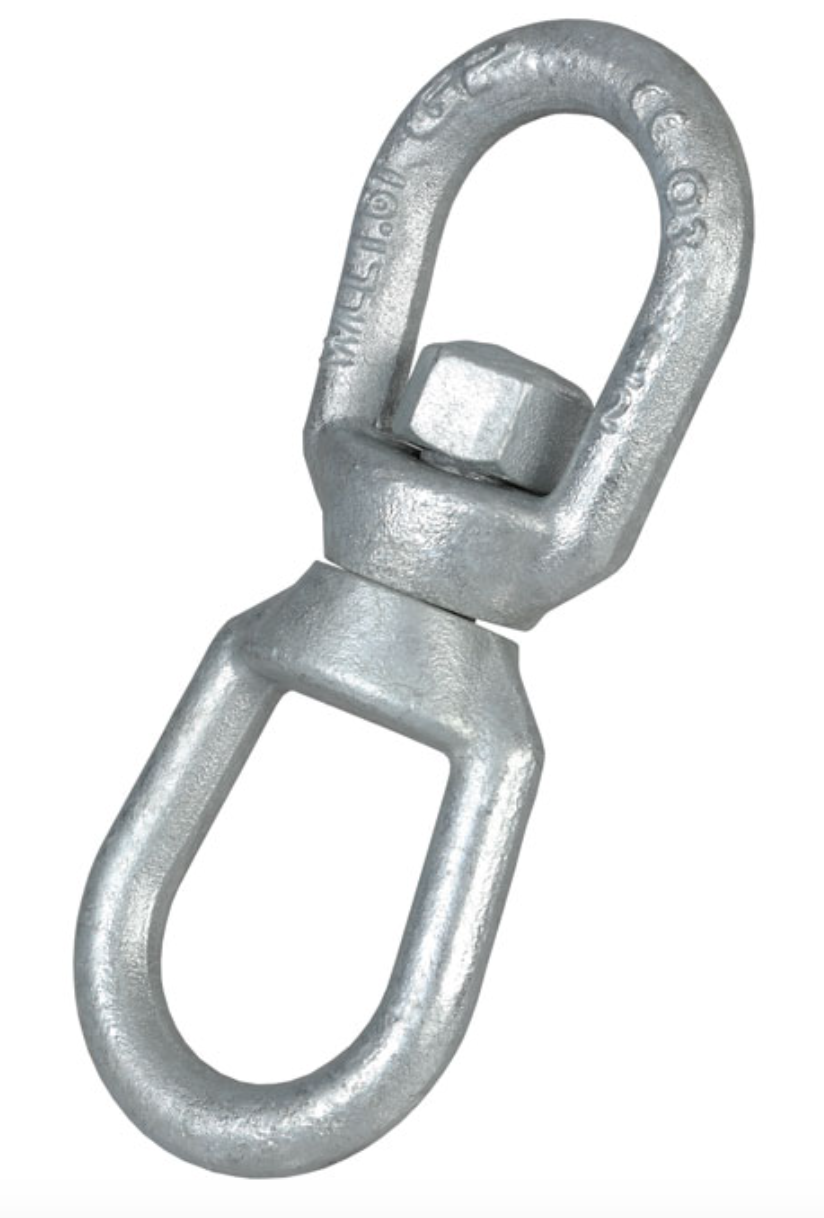

Green Pin Swivel Eye/Eye
| SKU |

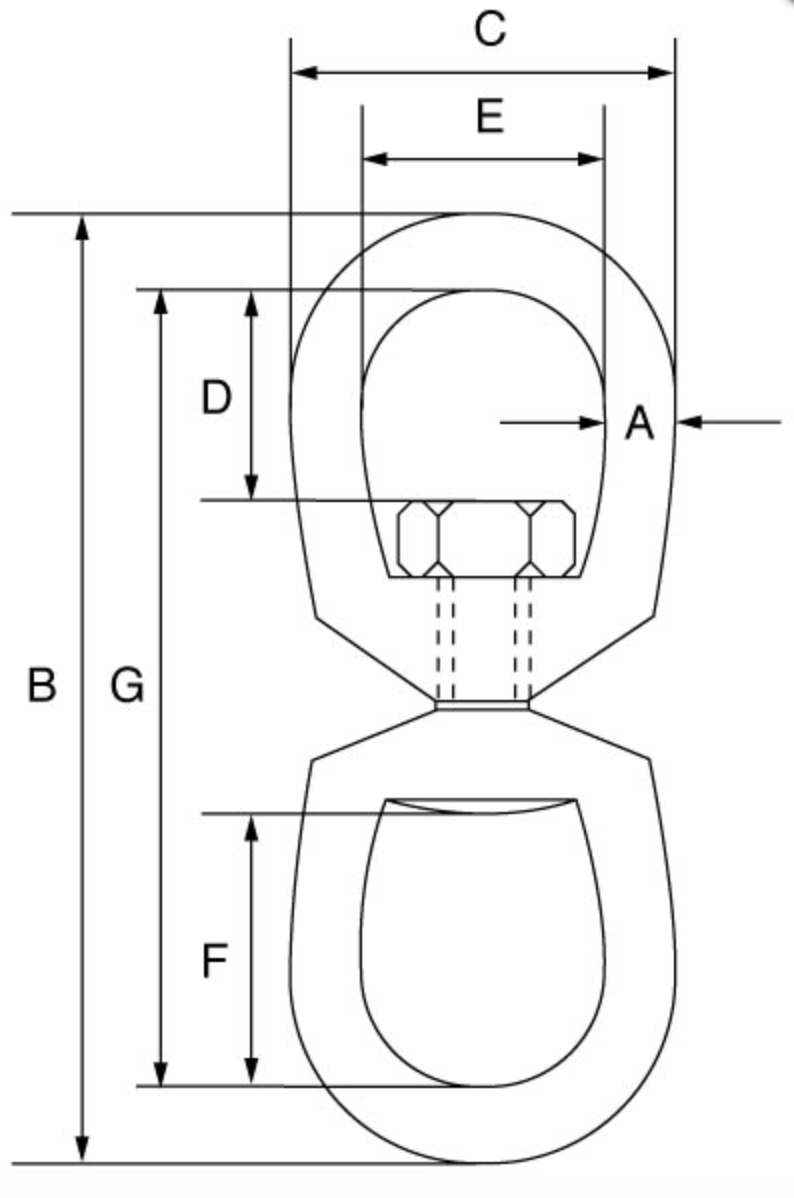

W.L.L. | A | B | C | D | E | F | G | Weight |
|---|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | mm | mm | mm | kgs | |
| 286-815-1 |
0.39 | 6 | 87 | 32 | 18 | 19 | 27 | 75 | 0.1 |
| 286-815-2 |
0.57 | 8 | 106 | 41 | 21 | 25 | 32 | 90 | 0.18 |
| 286-815-3 |
1.02 | 10 | 129 | 51 | 24 | 32 | 38 | 109 | 0.32 |
| 286-815-4 |
1.6 | 13 | 164 | 64 | 33 | 38 | 51 | 138 | 0.6 |
| 286-815-5 |
2.4 | 16 | 199 | 76 | 40 | 44 | 60 | 167 | 1.13 |
| 286-815-6 |
3.3 | 19 | 221 | 89 | 44 | 51 | 67 | 183 | 1.82 |
| 286-815-7 |
4.5 | 22 | 257 | 102 | 52 | 57 | 78 | 213 | 2.83 |
| 286-815-8 |
5.7 | 25 | 295 | 114 | 59 | 64 | 89 | 245 | 4.06 |
| 286-815-9 |
8.2 | 32 | 337 | 143 | 68 | 80 | 94 | 273 | 7.43 |
| 286-815-10 |
20.5 | 38 | 501 | 178 | 102 | 102 | 150 | 425 | 20.8 |
